 Professional Controller - SA600A
Home >Product > Professional> SA600

  FEATURES
  • Full Automatic Weighing process by using RF ID System Voice
    guidance for easy weighing process
    		•
  • All weighing data will be trasfered to Main P.C through net-work
    		•
  • Big Size display unit and Function keys
    		•
  • Can be apply "Wireless Communication system".
    		•

    “ Unattended Weighing System ” is the system, which Driver weighs Truck weight with non- touchable style
    card(RF Card), not by operating manager.
    “ Unattended Weighing System ” can maximize weighing processing efficiency through removing complicated
    processing flow of manual processing by smooth weighing process, precise weighing, and perfect data management
    and make smooth logistic flow by reducing time to stay on the weighing system of Truck.
    “ Unattended Weighing System ” uses private usage Controller board with “ Multi-Drop ” type communication
    protocol, and this “ Multi-Drop ” communication protocol makes easy extension of additional equipments and
    decreases extension cost.
    We diversify display windows to check all the necessary weighting information at once, and use “ Lexan ”film which
    is elegant and strong against water, Dust, and Sun-light.
    We developed special “ Module ” only for each part (Display, Keypad, RF Card Reader, Input/Output, Printer,
    D.C Power supply), so just replace particular module when module is defected.
    “ Unattended Weighing System ” has Temperature control system, controlling Controller inside temperature
    automatically according to winter/summer season temperature and Light control function for the weighing process
    at night.
    “ Unattended Weighing System ” has big size of Tower light and broadcast function which can be recognized Truck
    entrance, Weighing process finish from far-distance.

      SPECIFICATIONS

    Weighing method RFID CARD, KEY-PAD (Vehicle No.)
    Communication RS-422 (Converted to RS-232 with convertor)
    Printer Direct Thermal Printing, Auto Cutting
    Paper Thermal Roll Paper ( 59.5 x 80 Dia )
    Max distance with card MAX 200mm
    Lighting at Night Halogen Lamp AC12V / 20W
    Speaker 5W Built-in Speaker
    Regulation of temperature Biult-in Fan
    Power AC220V / 60Hz
    Dimension 550(W) x 835(H) x 550(D) ※ H : including top Light
    Option Computer System
    Camera System ( CCTV, DVR SYSTEM )
    Interphone

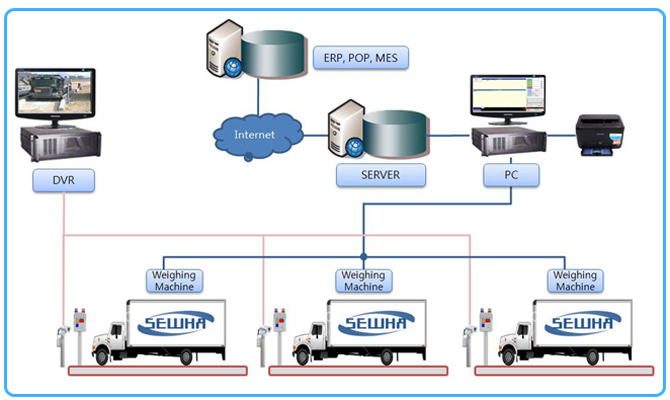

      SYSTEM OUTLINE

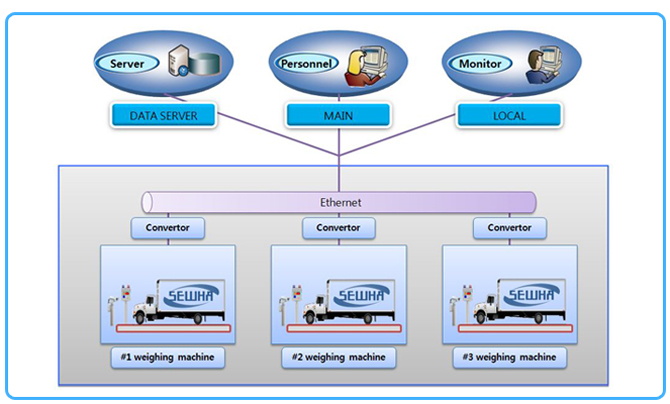

      NEWWORK

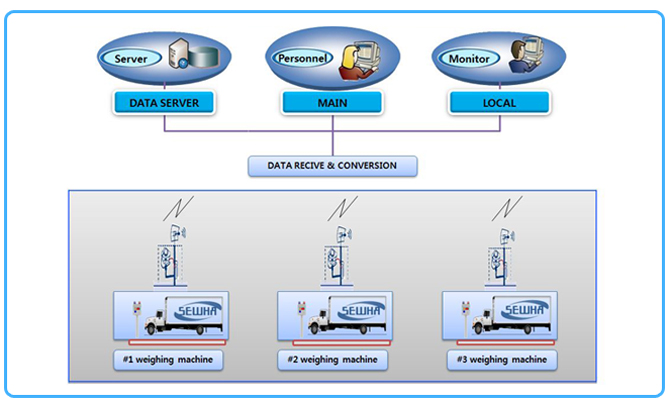

      WIRELESS NEWWORK
