Load Cell - Truck weighing type : SB900
 |
| Home >Product > Load Cell > Truck weighing type > SB900 |
 |
|
|
| |
 FEATURES |
| Robust design and easy installation |
| Strong against shock or side force |
| Protection class IP67 |
| |

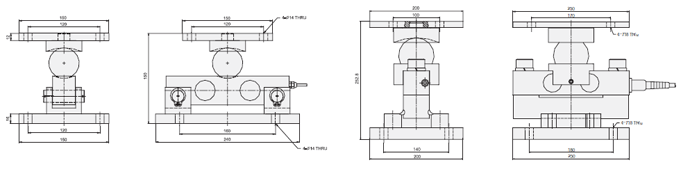

| DIMENSIONS |
|
|
| |
Material :Paint finished steel
Cable :
Braided shield 4-wire round cable |
| |
| SPECIFICATIONS |
| |
| Rated capacity(R.C) |
tf |
10, 15, 25tf |
| Rated output(R.O) |
mV/V |
2.0 ± 0.005 |
| Zero balance |
mV/V |
0 ± 0.02 |
| Combined error |
% |
0.03 |
| Repeatability |
% |
0.01 |
| Creep for 30min |
% |
0.03 |
| Temperature effect on |
|
|
| Zero Value |
%/10℃ |
0.028 |
| Output Value |
%/10℃ |
0.015 |
| Excitation |
|
|
| Recommended |
V |
10 |
| Maximum |
V |
15 |
| Resistance |
|
|
| Input |
Ω |
800 ± 40 |
| Output |
Ω |
700 ± 7 |
| Insulation |
MΩ |
>2000 |
| Compensated temperature range |
℃ |
-10 to + 40 |
| Operating temperature range |
℃ |
-20 to + 80 |
|
